A tool for

• Single and multiple parts and dimensionally variable purchased parts
• Adding & changing machining operations

Easily define internal contours using reference points

• Application: Creation of parametric inner contours

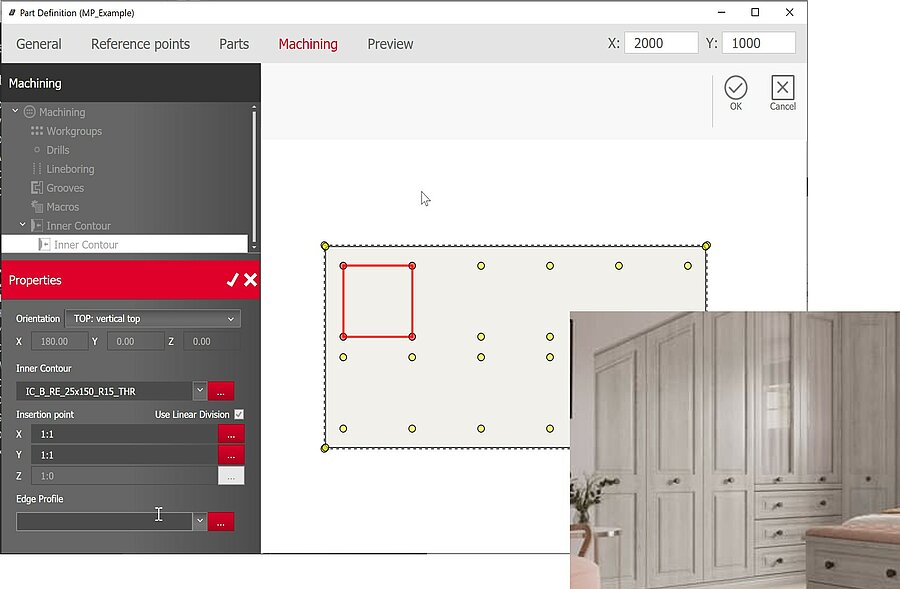

The new Part Editor tool in iX CAD provides improved usability and functionality when creating parametric parts. In particular, it now allows the creation of dimensionally variable purchased parts as well as the parametric design of internal contours. This feature is especially useful for designing MDF fronts with angled or rectangular inner contours, resulting in more convenience and flexibility.

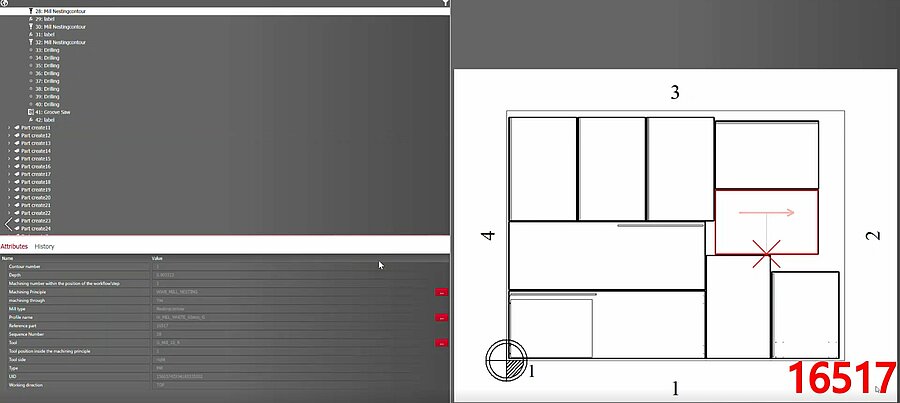

• Special function for selecting the associated parts
• Direct transfer to cutting optimization programs (CutRite, Ardis)

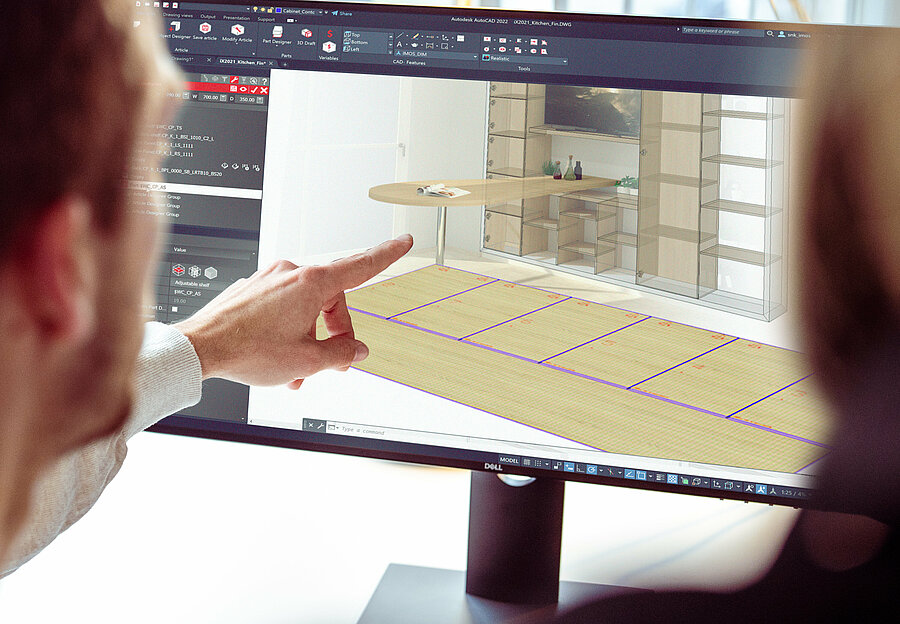

Our solution offers special functions to select parts that match a continuous veneer pattern in high-quality interior design. This function graphically sorts the parts directly in CAD planning. Then this information is transferred to common cutting optimization programs such as Schnittprofi(t) and Ardis. With our solution, you can optimize your veneer processing and minimize material waste. This allows you to achieve a uniform and aesthetically pleasing veneer appearance while being more efficient with your resources.

• Quick & easy single part view
• Optimized dimensioning

The visual part inspection feature provides a fast and user-friendly single part view as well as an optimized dimension display. This allows you to quickly inspect individual parts at any time during the design phase and identify potential design errors early on. This increases efficiency and ensures higher design quality.

• Convenient, fast and safe thanks to new assistants

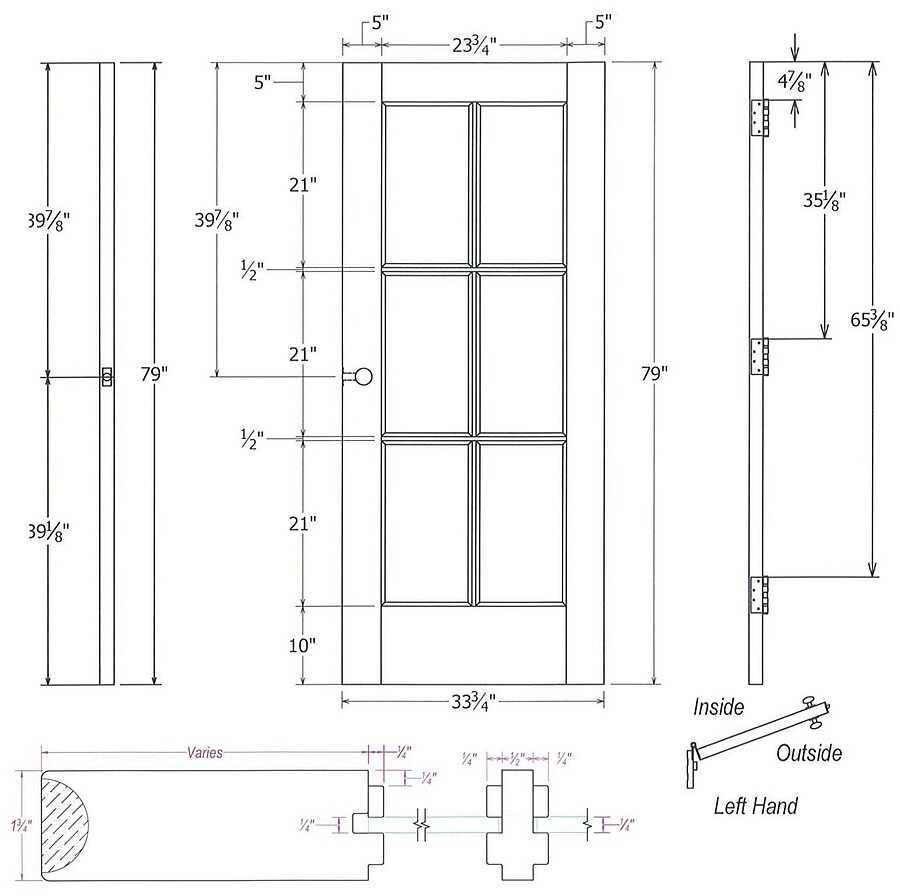

Special functions and a software wizard make the generation of drawing outputs in iX more convenient, faster and more individual. The wizard supports the user in the automatic creation of drawings and guides him through the application. Suitable suggestions are made, for example, for placing views, adding dimensions and tolerances, creating sections or section views, and inserting symbols or notes. These aids further simplify and speed up drawing creation, giving you high-quality output with minimal effort.

• Function for large projects, such as hotels, offices, etc.
• Fast planning and quotation generation in 2D
• Generation of 2D planning blocks
• Small amount of data in 2D planning
• Fast loading/editing/saving of orders
• Switch between 2D/3D at any time to generate output data or create renderings

To make the planning and implementation of large projects, such as open-plan offices or the furnishing of entire floors, more efficient, iX 23 offers an option to work in 2D. This enables a faster way of working. However, if required, individual objects or the entire design can be converted to 3D to generate room views or drawing output. The iX Organizer also allows you to divide a large project according to the building structures to ensure better planning and coordination of execution and production. This allows you to plan your projects more effectively and implement them more smoothly.

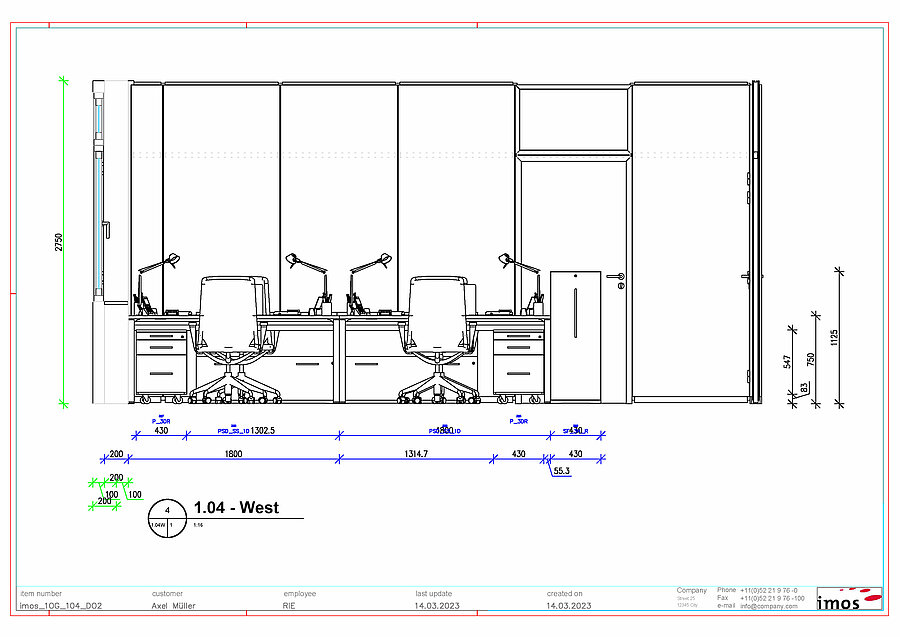

Floor plans, elevations and sections

• Linking through freely configurable display of attributes
• Determination of the contents of views by setting the lateral boundaries as well as the depth of view

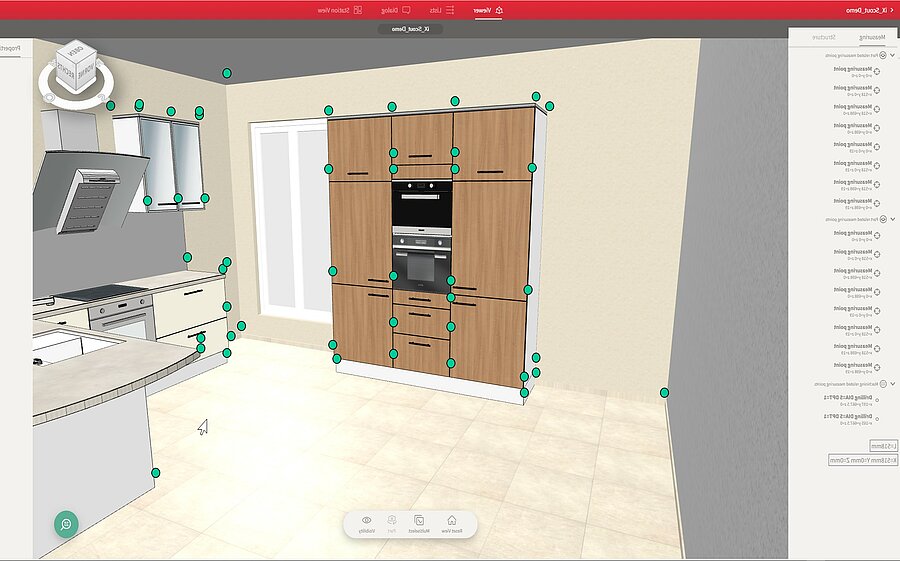

Intelligent import of digital room dimensions

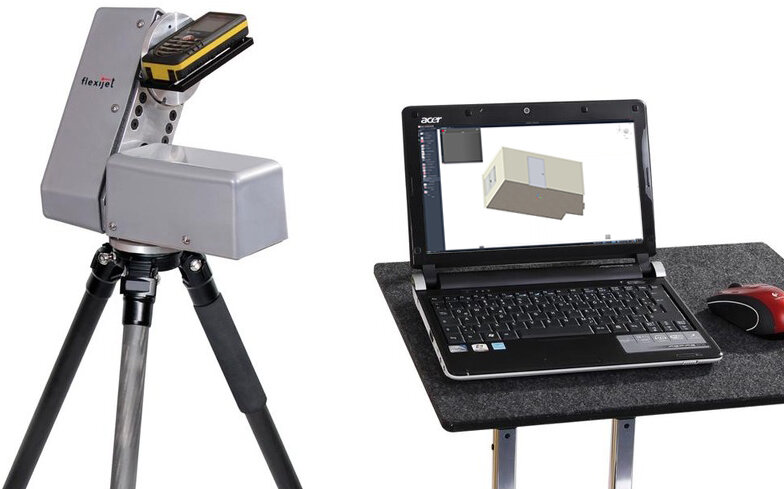

•  CAD laser measurement system Flexijet 3D offers export of 3D room data for iX CAD 2023
• iX 23 imports the measurement data, recognizes 3D room objects such as walls, windows, doors, floors and ceilings and creates an imos room plan.
• Available in iX CAD and iX Plan
• Support of different measurement systems (metric & imperial)

Thanks to this new integration, simple as well as complex room planning can be created quickly and safely in iX 23.

• Support of dynamic blocks on article level

• This can be used, for example, to map special requirements for article dimensions or detailed information on the design.
